SQL Server Compact Private Deployment tweaks

As a follow up to my previous post about Private Deployment (the concept that you can simply include the SQL Server Compact DLL files with your application as content, so to speak), I will show you a couple of tweaks that the .NET Framework enables.

Forcing an existing application to use the private DLL files

If you have an existing application, that is compiled against the centrally deployed DLL files, for example assembly version 3.5.1.0 or 4.0.0.0, you can force the application to use the private assembly version files instead (3.5.1.50 and 4.0.0.1), via an application configuration file. Lets take ExportSqlCe40.exe as an example. This application is complied against assembly version 4.0.0.0, so it will not work unless SQL Server Compact 4.0 runtime is centrally installed.

To force this application to use Private Deployment only, create a .config file named ExportSqlCe40.exe.config, with the following contents:

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
  <runtime>
    <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
      <dependentAssembly>
        <assemblyIdentity name="System.Data.SqlServerCe" publicKeyToken="89845dcd8080cc91" />
        <bindingRedirect oldVersion="4.0.0.0" newVersion="4.0.0.1" />
      </dependentAssembly>
    </assemblyBinding>
  </runtime>
</configuration>

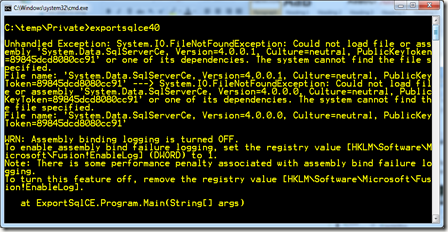

If you run the application now, you will get this error:

Now copy all files from the C:\Program Files\Microsoft SQL Server Compact Edition\v4.0\Private folder to the folder where the Exportsqlce40.exe file resides:

Now the application runs, and uses only the private DLL files.

Isolating the SQL Server Compact runtime files in a separate folder

Continuing the sample above, to be neater, it would be nice to have the SQL Server Compact DLL files in a subfolder below the .exe file location. This can be done by moving the files to a separate folder, for example named SqlCe4. Now I have moved all the SQL Server Compact files and folders to that folder:

Now modify the .config file as follows:

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
  <runtime>
    <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
      <probing privatePath="SqlCe4"/>
      <dependentAssembly>
        <assemblyIdentity name="System.Data.SqlServerCe" publicKeyToken="89845dcd8080cc91" />
        <bindingRedirect oldVersion="4.0.0.0" newVersion="4.0.0.1" />
      </dependentAssembly>
    </assemblyBinding>
  </runtime>
</configuration>

Notice the Probing setting above, that has been added. Also notice that this comes before the bindingRedirect.

Hop you find this useful.

SQL Server Compact Toolbox 2.2–Visual Guide of new features

After more that 32.000 downloads, version 2.2 of my SQL Server Compact Toolbox extension for Visual Studio 2010 is now available for download. This blog post is a visual guide to the new features included in this release, many suggested by users of the tool via the CodePlex issue tracker

Generate an Windows Phone DataContext (.cs) in the current project (beta feature)

This feature allows you to create a DataContext for use with Windows Phone “Mango” projects, based on an existing SQL Server Compact 3.5 database.

This will be a huge timesaver, and allows you to reuse the effort you may already have put in creating your database schema, including foreign keys and the required indexes. It will also save you much repetitive code, as the generated classes reflect your tables 1:1.

This technique even works with Northwind.sdf, despite object names with spaces. None of this is (of course) supported in any way by Microsoft.

Under the covers, I am using SQLMetal to generate a desktop DataContext class, and then this class is enhanced to work well in a Windows Phone project.

Advantages of this approach:
- Use desktop database tools for data population and schema design
- Saves time doing 1:1 mapping between database tables and DataContext classes
- DataContext classe and entity classes are partial and can be expanded
- Invalid DataContext constructors removed
- The generated DataContext contains Index definitions (which SqlMetal does not support, as this is a Windpows Phone extension)
- The generated DataContext contains the CreateIfNotExists method, that optionally extracts an included database (prepopulated with data) to Isolated Storage

If you also would like to include your desktop database with your XAP, the generated DataContext contains the code from this blog post and supports the procedure described in the blog post.

Please provide any feedback for this beta feature to the CodePlex issue tracker.

Add Description to tables and columns

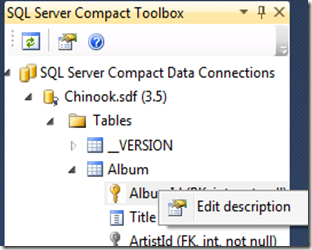

On Database, Table and Column level, there is a new menu item: Edit Description, that allows you to enter a object description. The object description are stored in a table named __ExtendedProperties in the current database.

The description is then shown as a tooltip for the object:

In addition, you can reuse the data for documentation etc. (I am planning a documentation feature in a future release)

Options dialog for saving options from session to session

A new options dialog is available from the main toolbar:

SQL Editor improvements

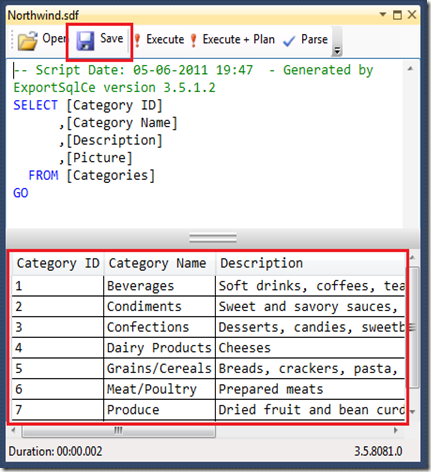

The SQL Editor (again) allows you to display the results in a Grid, rather than text. This can be selected via the Options above. (Using grid will be slower and requires more memory). Also, a Save Script button has been added.

Other minor improvements

Latest scripting libraries included, with improvements to Db Diff and primary keys with multiple columns

Thanks to all Toolbox users for your continued encouragement and feedback!

Populating a Windows Phone “Mango” SQL Server Compact database on desktop

For up to the minute news, outcries, complaints and cheers on SQL Server Compact, follow me on Twitter: @ErikEJ

If you want to prepopulate a Mango SQL Server Compact database with some data, you can use the following procedure to do this. (Notice, that the Mango tools are currently in beta)

First, define your data context, and run code to create the database on the device/emulator, using the CreateDatabase method of the DataContext. See a sample here. This will create the database structure on your device/emulator, but without any initial data.

Then use the Windows Phone 7 Isolated Storage Explorer to copy the database from the device to your desktop, as described here.

You can now use any tool, see the list of third party tools on this blog, to populate your tables with data as required. The file format is version 3.5. (not 4.0)

Finally, include the pre-populated database in your WP application as an Embedded Resource.

UPDATE: I was made aware, that for read only data, you can just include the database file as Content (not Embedded Resource), and it will be available from the special appdata: URI, with a connection string like the following:

“Data Source=appdata:/Chinook.sdf;Mode=Read Only”

So no need to run code to extract from an Embedded resource as below in that case.

You can then use code like the following to write out the database file to Isolated Storage on first run:

public class Chinook : System.Data.Linq.DataContext
{
    public static string ConnectionString = "Data Source=isostore:/Chinook.sdf";

    public static string FileName = "Chinook.sdf";

    public Chinook(string connectionString) : base(connectionString) { }

    public void CreateIfNotExists()
    {
        using (var db = new Chinook(Chinook.ConnectionString))
        {
            if (!db.DatabaseExists())
            {
                string[] names = this.GetType().Assembly.GetManifestResourceNames();
                string name = names.Where(n => n.EndsWith(FileName)).FirstOrDefault();
                if (name != null)
                {
                    using (Stream resourceStream = Assembly.GetExecutingAssembly().GetManifestResourceStream(name))
                    {
                        if (resourceStream != null)
                        {
                            using (IsolatedStorageFile myIsolatedStorage = IsolatedStorageFile.GetUserStoreForApplication())
                            {
                                using (IsolatedStorageFileStream fileStream = new IsolatedStorageFileStream(FileName, FileMode.Create, myIsolatedStorage))
                                {
                                    using (BinaryWriter writer = new BinaryWriter(fileStream))
                                    {
                                        long length = resourceStream.Length;
                                        byte[] buffer = new byte[32];
                                        int readCount = 0;
                                        using (BinaryReader reader = new BinaryReader(resourceStream))
                                        {
                                            // read file in chunks in order to reduce memory consumption and increase performance
                                            while (readCount < length)
                                            {
                                                int actual = reader.Read(buffer, 0, buffer.Length);
                                                readCount += actual;
                                                writer.Write(buffer, 0, actual);
                                            }
                                        }
                                    }

                                }
                            }
                        }

                        else
                        {
                            db.CreateDatabase();
                        }
                    }
                }
                else
                {
                    db.CreateDatabase();
                }
            }
        }
    }
}
