Friday, January 28, 2011

SQL Server Compact Toolbox 2.0–Visual Guide of new features

Version 2.0 of my SQL Server Compact Toolbox extension for Visual Studio 2010 is now available for download. This blog post is a visual guide to the new features included in this release, many suggested by users of the tool via the CodePlex issue tracker.

Full support for SQL Server Compact 4 and the Visual Studio 2010 SP1 Tools for SQL Server Compact 4

The list of databases in the toolbox is now pulled from three sources, Server Explorer connections to 3.5 databases, Server Explorer connections to 4.0 databases, via the new Server Tools for VS 2010 SP1, and finally your own 4.0 connections (VS 2010 SP1 not required).


Your “own” connections are indicated with a + sign next to the database icon. In addition, the engine version is displayed.

SQL Editor improvements

The SQL Editor has been enhanced with the following new features:


- Added colored syntax to editor text
- Actual plan button added to editor toolbar
- Query duration added to editor status bar
- Runtime version added to editor status bar

Upgrade to version 4.0 format


An option to upgrade a 3.x database file to version 4 has been added to the “Add SQL Server Compact 4.0 Connection” dialog. More information about the Upgrade api here.

SQL Compact File Version checker



A SQL Server Compact version detection function has been added, to allow you to determine if a given file is version 2, 3.0/3.1, 3,5 or 4.0 database format.

All available SQL Server Compact data types listed


A Data types node with documentation tooltips has been added to the Toolbox tree view.

Enhanced About dialog


About dialog with more detailed SQL Server Compact status information, listing the exact runtime version of the ADO.NET provider in the GAC and detecting if the associated DbProvider is properly registered in machine.config.

As always, please provide feedback, suggestions and reviews at the CodePlex site:

Thursday, January 13, 2011

SQL Server Compact 4.0 released!



WebMatrix has been released and will be launched at CodeMash on Thursday 13/1. Sign up for the live streaming event here.

Download locations

At the same time, SQL Server Compact 4.0 (build 4.0.8482.1) has been  released to web, and is available via Web Platform Installer 3.0 and also available for download here:

Microsoft SQL Server Compact 4.0 (x86 and x64)

SQL Server Compact 4.0 Books Online

Visual Studio 2010 SP1 Tools for SQL Server Compact 4.0

(Team blog post about the VS 2010 SP1 tooling support)

Related blog posts

ScottGu has just issued a long blog post about using SQL Server Compact 4.0 with WebForms + Entity Framework Database First and MVC + Entity Framework Code First.

The SQL Compact team has a concise feature overview. And release announcement, which also includes information about scenarios not enabled with SQL Server Compact 4.0.

I have blogged about SQL Server Compact 4 at several occasions:

Getting started with SQL Server Compact 4.0 and ASP.NET 4.0 (no WebMatrix)

SQL Server Compact 4.0 news roundup

Downsize a SQL Server database to SQL Server Compact 4.0 (and 3.5)

SQL Server Compact version detector

SQL Server Compact 4.0 ASP.NET Membership provider

SQL Compact 4.0 now available as a .zip file

Using Entity Framework with SQL Server Compact 4.0 CTP and ASP.NET – tips & tricks (part one)

Entity Framework with SQL Server Compact 4.0 and ASP.NET – Dynamic Data, OData, deployment (part two)

Visual Studio Tools for SQL Server Compact 4 now available

SQL Server Compact “Private Deployment” on desktop–an overview

Comparison of SQL Server Compact 4 and SQL Server Express 2008 R2

Using SQL Server Compact 4.0 with WPF DataGrid, Entity Framework 4 and Private deployment (part 1)

Entity Framework with SQL Server Compact 4.0 and ASP.NET – Dynamic Data, OData, deployment (part two)

Using SQL Server Compact 4.0 with WPF DataGrid, Entity Framework 4 and Private deployment (part 1)

Using SQL Server Compact 4.0 with Desktop Private Deployment and a Setup project (MSI) (part 2)

Access SQL Server Compact 4 with ASP Classic and VbScript

Migrate a SQL Server Compact database to SQL Server using Web Deploy (MSdeploy)

Visual Studio 2010 Service Pack 1 with support for SQL Server Compact 4.0 released

Snapshot Synchronization with SQL Server Compact 4.0

Useful new topics in SQL Server Compact 4.0 Books Online

Saving images to SQL Server Compact with Entity Framework 4.1 Code First

Deployment improvements

The “Private” folder contains both the x64 and x86 related DLL files, and also contains the required C++ runtime DLL (new in RTM):


I will update my “Private Deployment” blog post with the new information.

No SQL Server Synchronization Supported

The SQL Server Compact 4.0 release does not support syncing of data with SQL Server using technologies like Microsoft Sync Framework, or merge replication, or remote data access (RDA).

Duplicate constraint names issue

The generation of the Entity Data Model for SQL Server Compact will fail if there are duplicate constraint names in the SQL Server Compact schema.

In SQL Server Compact, the constraint names are unique within a table and this can allow duplicate constraint names in the database. The behavior is different from SQL Server, where the constraint names are unique across the database. If a SQL Server Compact schema has duplicate referential integrity (primary key – foreign key relationship) constraint names, the generation of the Entity Data Model using the ADO.NET Entity Framework’s Entity Data Model Wizard will fail. The workaround is to change the name of the duplicate constraint name to be unique across the database, like by adding the name of the table to the constraint name.

I have worked around this limitation in my SQL Server Compact tools, SQL Server Compact Toolbox and SQL Server Compact Scripting Tools

Monday, January 10, 2011

SQL Server Compact 4.0 release on Jan 13?

WebMatrix will be released at CodeMash on Thursday 13/1. I expect that since WebMatrix includes SQL Server Compact 4.0, this product will release at the same time (as well as IIS Express). Sign up for the live streaming event here.

Thursday, January 6, 2011

Entity Framework with SQL Server Compact 4.0 and ASP.NET – Dynamic Data, OData, deployment (part two)

We can now use two additional technologies, that both build on Entity Framework, to add some administrative features to our Chinook music shop, with minimal amount of coding effort:

- A website for administering the rarely used tables in the database (using a Dynamic Data website)

- Access to the Invoice data in Excel (using WCF Data Services)

Since we are not using the standard Entity Framework classes, but use a POCO based Data Access Layer, we need to accommodate slightly, as I will demonstrate.

Adding Dynamic Data website

Continuing where we left in Part One, add a ASP.NET Dynamic Data Entities Web Application to the solution:


Set this project as the Startup project. Add references to Chinook.Data and Chinook.Model from this project.

Modify the global.asax to refer to the ChinnokEntities ObjectContext:

public static void RegisterRoutes(RouteCollection routes)
DefaultModel.RegisterContext(typeof(Chinook.Model.ChinookEntities), new ContextConfiguration() { ScaffoldAllTables = true });

Also set ScaffoldAllTables = true for now – this means that admin pages are created for all the entities in the context.

Copy the connectionstrings section from web.config in the Chinook.UI project to the Chinnok.Admin project web.config file.

Try to run the site – you will get this error:

Could not find the CLR type for 'ChinookModel.Track'.

This is due to the fact that we are using POCO, so the Entity Framework initializer does not load the required metadata. The solution for this is here, so we add a new class to the Chinook.Data project (called ChinookEntities.Custom.cs), with the following contents:

namespace Chinook.Model
public partial class ChinookEntities
//Dynamic Data
public ChinookEntities(bool dynamicData)
: base(ConnectionString, ContainerName)
var tracestring = this.CreateQuery<Genre>("ChinookEntities.Genres").ToTraceString();

Then use this constructor in global.asax, and also set scaffold all tables = false:

DefaultModel.RegisterContext((() => new Chinook.Model.ChinookEntities(true)), new ContextConfiguration() { ScaffoldAllTables = false });

When you now run the site, you will get this error, as no tables are available:

There are no accessible tables. Make sure that at least one data model is registered in Global.asax and scaffolding is enabled or implement custom pages.

To include the two tables in question, we must add some partial classes to the Model project. Add a reference to System.ComponentModel.DataAnnotations in the Model project, and add to new classes with the following contents:

// Dynamic Data - add ref to System.ComponentModel.DataAnnotations
// and set scaffoldtable = true to using partial class
using System.ComponentModel.DataAnnotations;

namespace Chinook.Model
public partial class MediaType

Now you can manage the Genres and MediaTypes tables:


Adding WCF Data Service (OData)

The accounting department would like to access the Invoice data in our Music Shop from Excel. PowerPivot can connect to many data sources, but not directly to a SQL Server Compact database file, and access via the OLEDB provider is broken. But PowerPivot can access an OData feed, so let’s create one to expose the SQL Server Compact Invoice and InvoiceLine tables.

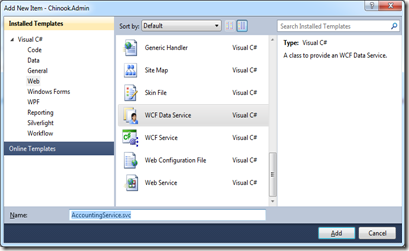

Add a WCF Data Service to the Chinook.Admin project:


Modify the AccountingService class as follow, and add a “using Chinook.Model” statement:

public class AccountingService : DataService<ChinookEntities>
public static void InitializeService(DataServiceConfiguration config)
config.SetEntitySetAccessRule("Invoices", EntitySetRights.AllRead);
config.SetEntitySetAccessRule("InvoiceLines", EntitySetRights.AllRead);
config.DataServiceBehavior.MaxProtocolVersion = DataServiceProtocolVersion.V2;

protected override ChinookEntities CreateDataSource()
var context = new ChinookEntities(true);
// Avoid dynamic proxies, as they cannot be serialized
context.ContextOptions.ProxyCreationEnabled = false;
return context;
We only allow read-only access to the Invoices and InvoiceLines entities. In addition, we must override CreateDataSource, to solve the problem with metadata we also had with Dynamic Data and disable ProxyCreation.

You can now point PowerPivot to the AccountingService.svc URL and access the invoice data from Excel:




Finally a few words on deployment and connection handling. As you may know, opening and closing connections to a SQL Server Compact file is a costly operation, and there is no concept of Connection Pooling with SQL Server Compact. A way to mimic a connection pool is to keep a dummy connection (that is not otherwise used) open for the duration of your application’s lifetime. For a web application, this can be achieved I global.asax, in the Application_Start event handler. In this sample, I have implemented a possible solution in the UI project, by calling the: Chinook.Repository.ContextHelper.Open();

The ContextHelper is implemented as follows:

public static class ContextHelper
private static ChinookEntities context ;
private static object objLock = new object();

public static void Open()
lock (objLock)
if (context != null)
throw new InvalidOperationException("Already opened");
context = new ChinookEntities();


Calling Open in this singleton class will keep a connection to the SQL Sever Compact file open for the lifetime of the application, and make subsequent  calls to Connection.Open fast.

For deployment, we must move the sdf file the App_Data folder, I have done this in the UI project, and also change the connection string in web.config as follows:

provider connection string=&quot;Data Source=|DataDirectory|\Chinook40.sdf&quot;

Hope you found this walkthrough useful. For a deeper dive into Entity Framework 4, I highly recommend the Julie Lerman book.

You can download the full solution from here:
